NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display
NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display
SKU:60005046
Low stock
Couldn't load pickup availability
Meticulously powerful signage
When true-to-life colour rendition is essential, the MA Series’ advanced feature set delivers calibrated precision, without compromise. For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MA series at the high end of professional content delivery.
The MA series’ modular design includes Intel® Smart Display Module (Intel® SDM) technology integrated into the display, facilitating powerful media playback for the most intuitive signage creation and delivery. Featuring an integral audio amplifier, multi-picture mode technology and extensive connectivity including video out, the MA series offers versatile functionality for corporate signage and prestige retail applications.
Benefits
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience
- Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
DISPLAY
Panel Technology | IPS with Edge LED backlights |
Screen Size [inch/cm] | 43 / 108 |
Aspect Ratio | 16:9 |
Brightness [cd/m²] | 500 |
Contrast Ratio | ≥ 8000:1 1 |
Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
Colour Depth [bn] | 1.073 (10bit) |
Colour Gamut | 86% of DCI |
Response Time (typ.) [ms] | 8 |
Panel Refresh Rate [Hz] | 60 |
Haze Level [%] | Pro (28) |
Supported Orientation | Face Up 2; Landscape; Portrait |
RESOLUTION
Native Resolution |
3840 x 2160
|
Supported Resolutions |
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160;7680 x 4320
|
SYNCHRONISATION RATE
Horizontal Frequency [kHz] | 15 - 135 |
Vertical Frequency [Hz] | 23 - 86 |

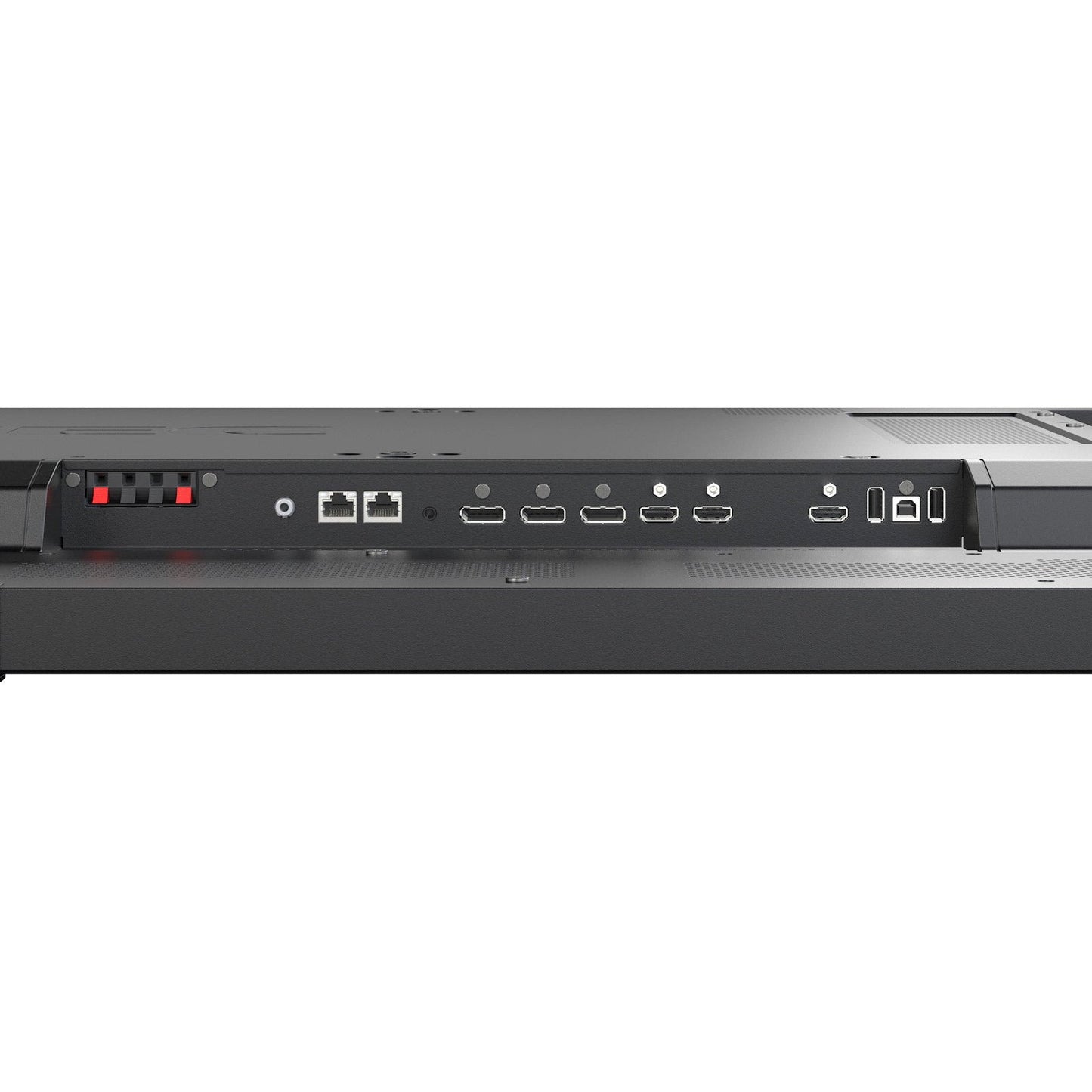

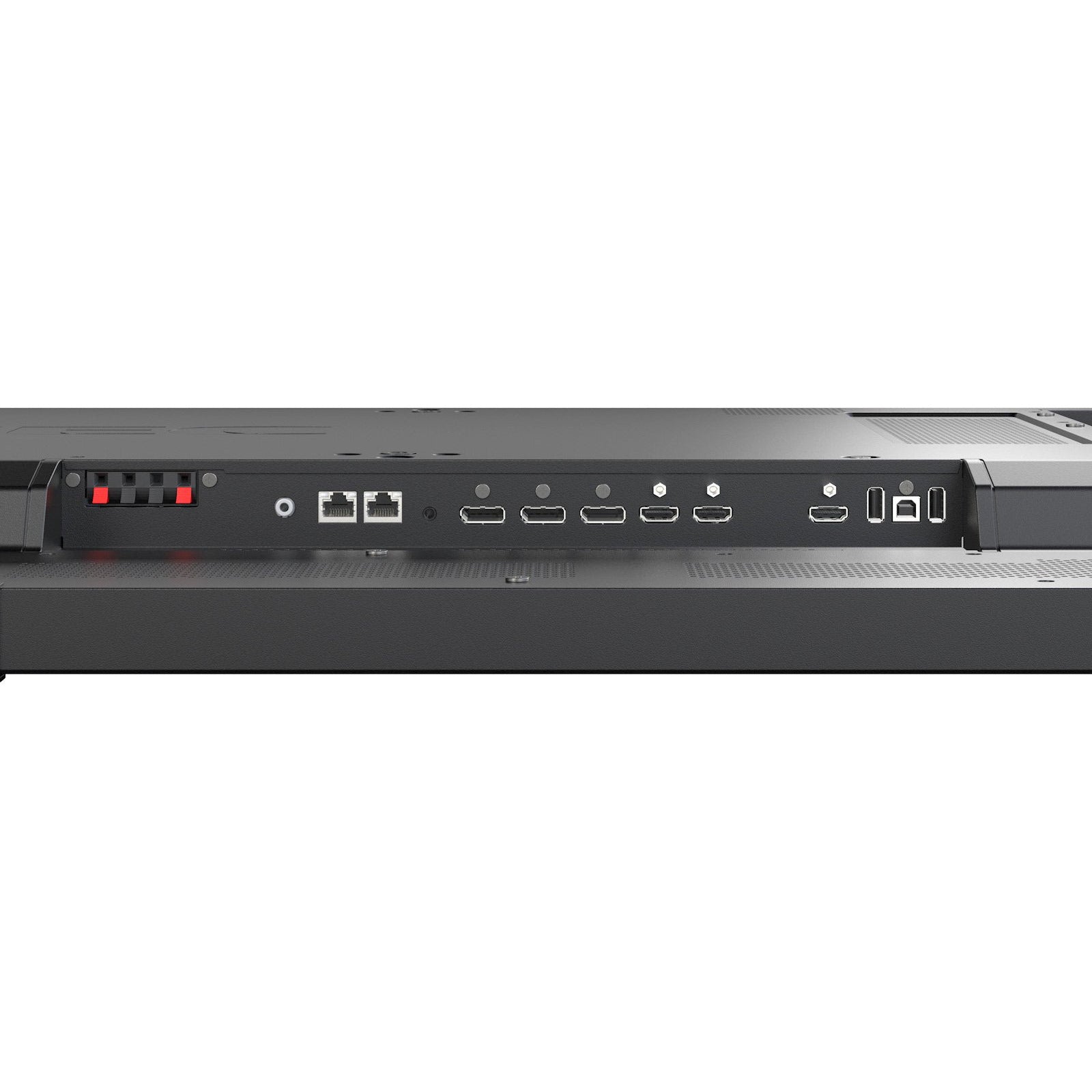

CONNECTIVITY
Input Video Digital | 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
Input Audio Digital | 1 x DisplayPort; 2 x HDMI |

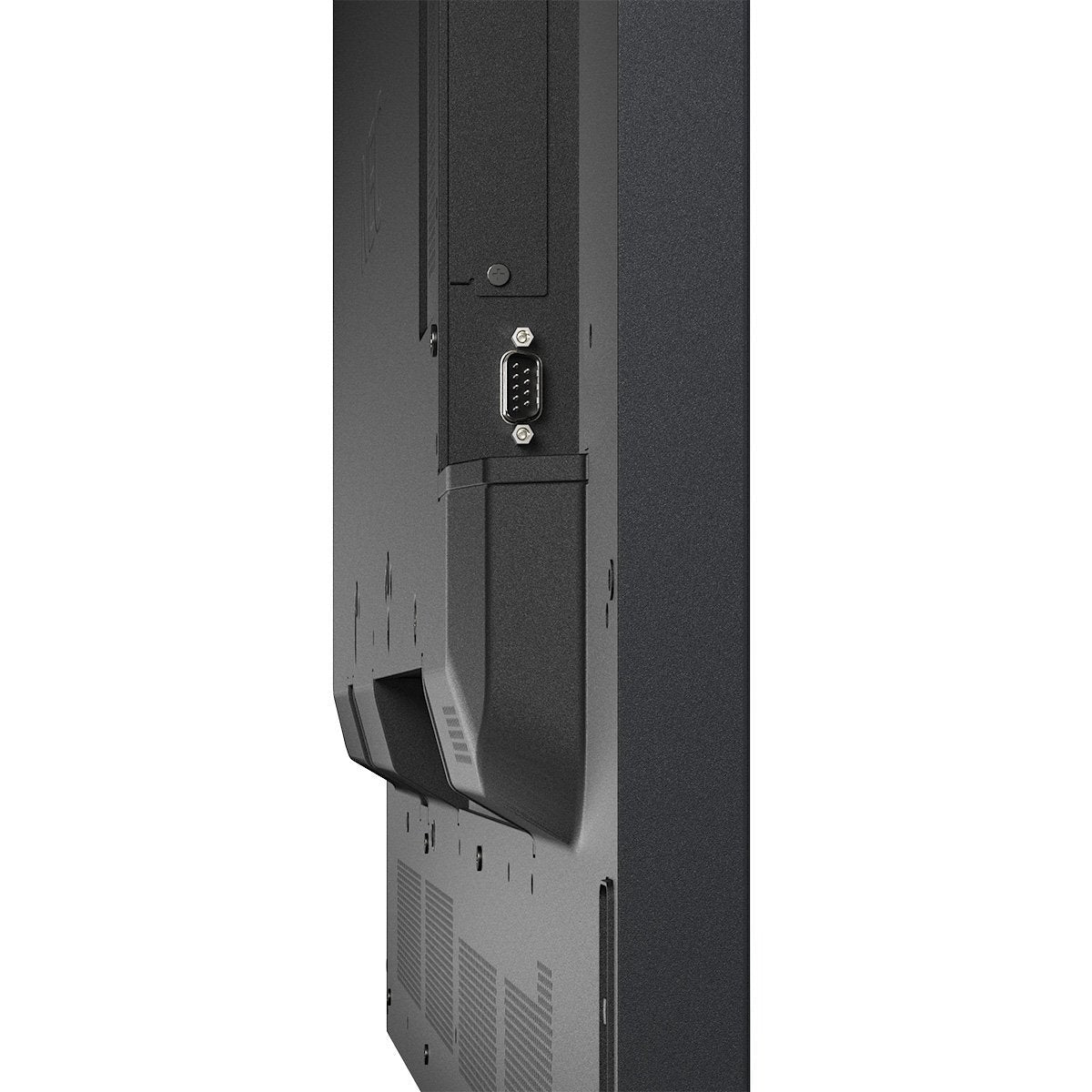

Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
Input Data | 1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream) |
Output Video Digital | 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC) |
Output Audio Analogue | 1 x 3,5 mm jack |
Output Control | 1 x LAN 100Mbit |
Input Detect | Custom; First; Last |
PiP/PbP | Dual-Split; Quad-Split; scalable picture size |
CALIBRATION
Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point |
Sensor Calibration (through USB) | PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) |
Calibration with Software | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
Calibration Software | NEC Display Wall Calibrator |
OPEN MODULAR INTELLIGENCE
Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
Compute Module Slot | RPi Compute Module 4 |
SENSORS
Ambient Light Sensor | Integrated, triggered actions programmable |
Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
ELECTRICAL
Power Consumption Eco/max. [W] | 70 shipping |
Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
Power Management | VESA DPMS |
Power Supply | 100-240 V AC; 50/60 Hz; internal |
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] | +0 to +40 |
Operating Humidity [%] | 20 to 80 |
Storage Humidity [%] | 10 to 90 |
Storage Temperature [°C] | -20 to 60 |
MECHANICAL
Dimensions (W x H x D) [mm] | 968.2 x 561 x 67.1 |
Weight [kg] | 18.5 |
Bezel Width [mm] | 11 (left, right and top); 15.6 (bottom) |

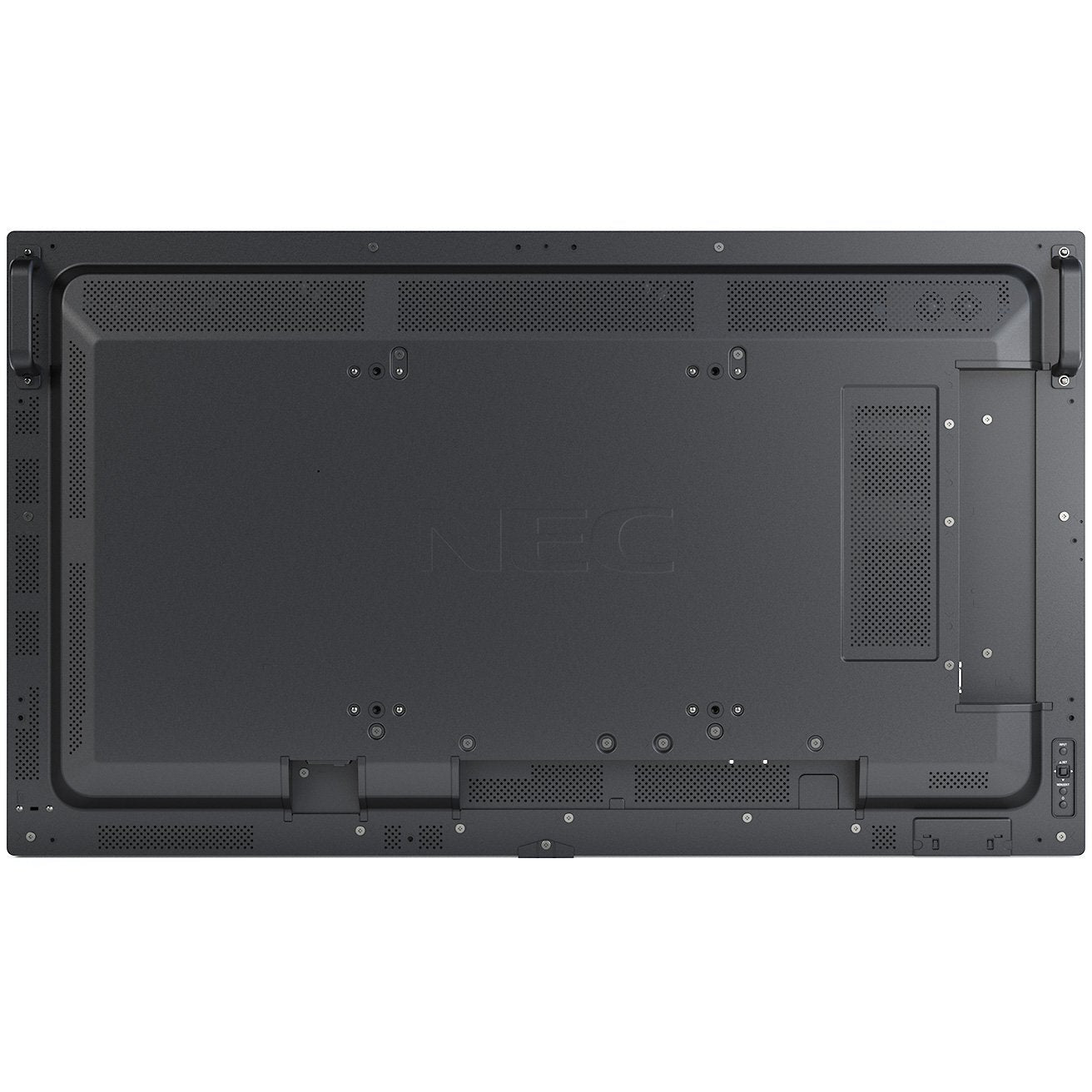

VESA Mounting [mm] | 300 x 300 (FDMI); 4 holes; M6 |
Ingress Protection | IP5x (front); IP2x (back) |
Packaging Dimensions (W x H x D) [mm] | 1,120 x 700 x 203 |
Packaging Weight [kg] | 23 |
Colour Bezel | Pantone 426M (black) |
Material | Metal |
AVAILABLE OPTIONS
Accessories | Feet (ST-401/ST-43M); Presence Sensor (KT-RC3); Soundbar (passive: SP-PSCM-IQ); Speaker (SP-RM3); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P) |
GREEN FEATURES
Energy Efficiency | Energy consumption: 85 kWh/1000 h; Energy efficiency class: G; LED backlight |
Ecological Standards | EnergyStar 8.0 |
ADDITIONAL FEATURES
Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
Pixel Failure Class | ISO 9241-307, Class 1 |
Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3 |
Operating Hours | 24/7 |
External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; Crestron RoomView; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
![Dark Red NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display](http://www.afterhours.co.uk/cdn/shop/files/NEC_MA-Series_Front_content_1600x1200_6df6a4d2-1ebe-4487-b453-1c4937ea0ddc.jpg?v=1689197639&width=1445)
![Dark Slate Gray NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display](http://www.afterhours.co.uk/cdn/shop/files/NEC_MA431_Back__1600x1200_2a04ca6f-7686-4a30-bfb1-a52a1c517dab.jpg?v=1689197638&width=1445)

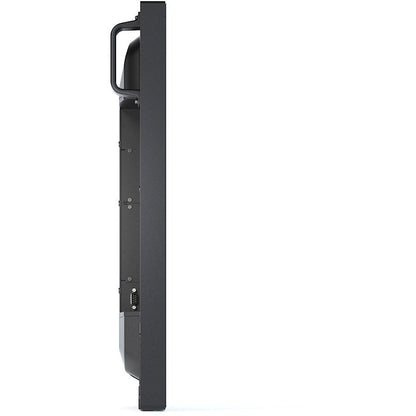

![Dark Slate Gray NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display](http://www.afterhours.co.uk/cdn/shop/files/NEC_MA431_Left_1600x1200_722013db-e334-4293-b82a-4ff8a6e08b89.jpg?v=1689197638&width=1445)
![Dark Slate Gray NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display](http://www.afterhours.co.uk/cdn/shop/files/NEC_MA-Series_Angle_Left_1600x1200_13702b45-e67a-4b2a-94ee-441de5c645e5.jpg?v=1689197639&width=1445)

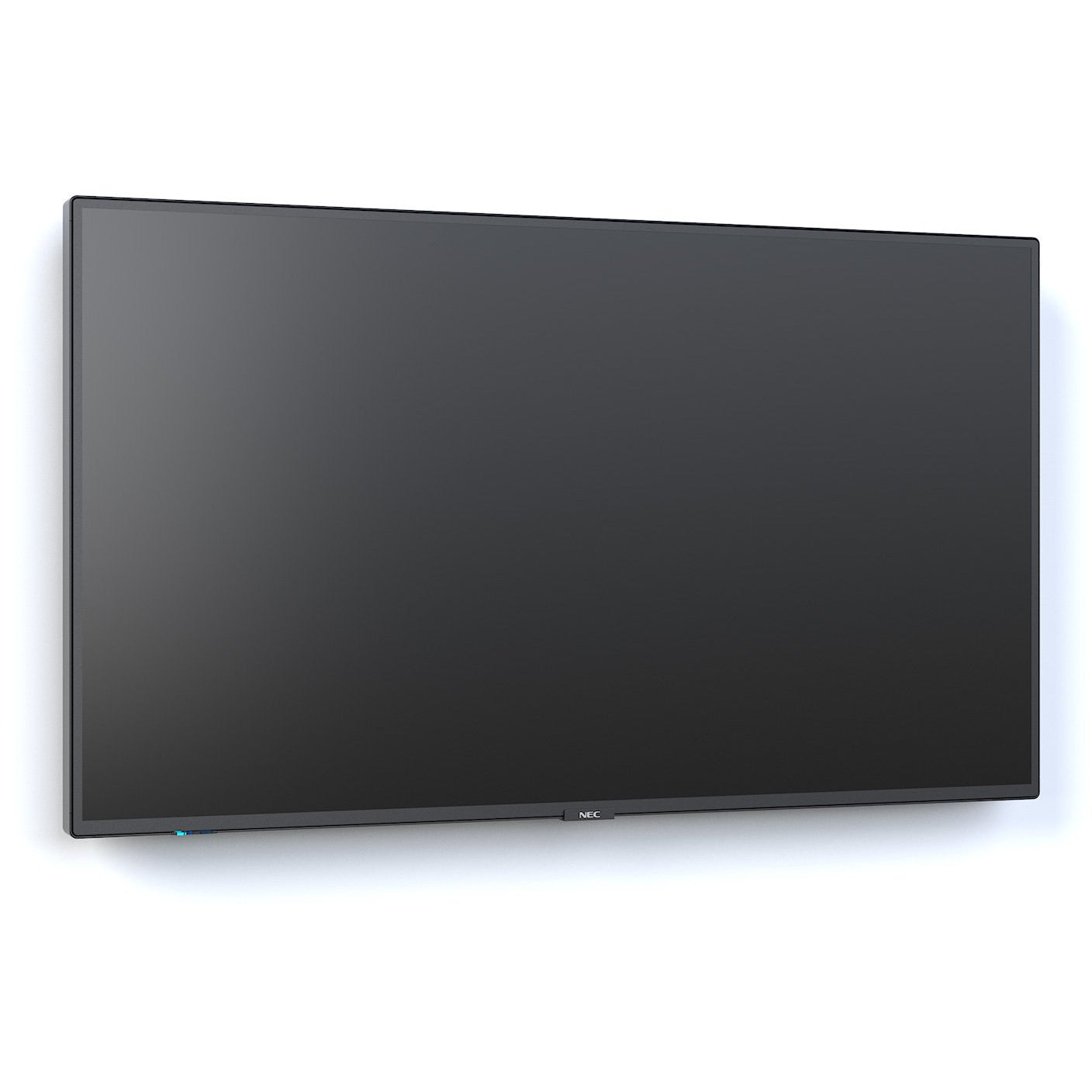

![Dark Slate Gray NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display](http://www.afterhours.co.uk/cdn/shop/files/NEC_MA-Series_Angle_Right_1600x1200_29ae344a-ccce-4e09-9ecd-71398a6dd6b9.jpg?v=1689197638&width=1445)

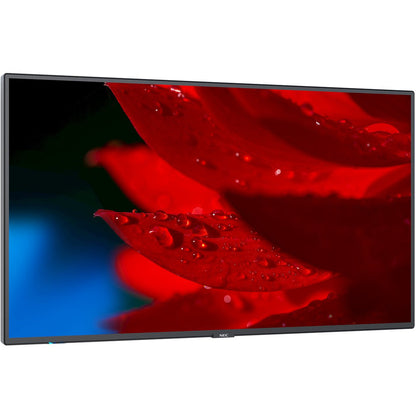

![Dark Red NEC MultiSync® MA431 LCD 43" Message Advanced Large Format Display](http://www.afterhours.co.uk/cdn/shop/files/NEC_MA-Series_Angle_Right_content_1600x1200_78c8d7d7-4368-40ea-baba-9d7e300f6d0b.jpg?v=1689197639&width=1445)
