NEC MultiSync® ME651 AirServer LCD 65" Midrange Large Format Display (incl. AirServer® Embedded Screen Mirroring Solution)
NEC MultiSync® ME651 AirServer LCD 65" Midrange Large Format Display (incl. AirServer® Embedded Screen Mirroring Solution)
SKU:40001587
Out of stock
Couldn't load pickup availability
Content sharing made simple with native wireless screen mirroring
Initiating effective collaboration in meeting rooms has never been easier to plan, install and operate. Simply share content from your personal device to the large meeting room display.
The MultiSync® ME/M series AirServer models provide a sleek combination of intuitive screen sharing with professional display technology for meeting rooms and huddle spaces.
Future-proof and upgradable, AirServer software is powered by a pre-installed modular SoC Raspberry Pi module which transforms the Sharp/NEC M and ME series large format display into a universal screen mirroring receiver. With AirServer enabled on the Sharp/NEC large format display, users can wirelessly mirror the content on their personal screen (Mac or PC, iPhone, iPad, Android or Chromebook) to the meeting room display, instantly turning the room into a collaborative space.
Benefits
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
- Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
DISPLAY
Panel Technology | IPS with Direct LED backlights |
Screen Size [inch/cm] | 65 / 163.9 |
Aspect Ratio | 16:9 |
Brightness [cd/m²] | 400 |
Contrast Ratio | ≥ 8000:1 1 |
Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
Colour Depth [bn] | 1.073 (8bit + FRC) |
Response Time (typ.) [ms] | 6 |
Panel Refresh Rate [Hz] | 60 |
Haze Level [%] | Standard (1) |
Supported Orientation | Landscape; Portrait |
RESOLUTION
Native Resolution |
3840 x 2160
|
Supported Resolutions |
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
|
SYNCHRONISATION RATE
Horizontal Frequency [kHz] | 26 - 135 |
Vertical Frequency [Hz] | 23 - 86 |
CONNECTIVITY
Input Video Digital | 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
Input Data | 1 x USB 2.0 (MediaPlayer) |
Output Audio Analogue | 1 x 3,5 mm jack |
Input Detect | Custom; First; Last |
OPEN MODULAR INTELLIGENCE
Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
Compute Module Slot | RPi Compute Module 4 |
AIRSERVER EMBEDDED SCREEN MIRRORING SOLUTION
AirPlay | code and password; extend macOS display; iOS, iPadOS and macOS; screen mirroring and content sharing |
Google Cast | Android, Chrome OS and Google Chrome; prompt security; screen mirroring and cast from apps with DRM |
Miracast | Android and Windows; extend Windows 10 desktop; Miracast over infrastructure; screen mirroring; touchback and pen support |
Guest Connectivity | 2.4 and 5 GHz channel selection; access control (device only, Internet only or Internet/LAN; Wi-Fi Hotspot; WPA2 security |
Video Output | up to Full HD (1920 x 1080) at 60 fps |
No. of Connections | 1 |
Networking | 1 x Gigabit LAN; 802.11 ac/b/g/n Wi-Fi; 802.1X security; IPv6 adresses; Proxy |
Automatic Updates | provides new features and security enhancements |
SENSORS
Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
ELECTRICAL
Power Consumption Eco/max. [W] | 165 shipping |
Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
Power Management | VESA DPMS |
Power Supply | 100-240 V AC; 50/60 Hz; internal |
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] | +0 to +40 |
Operating Humidity [%] | 20 to 80 |
Storage Humidity [%] | 10 to 90 |
Storage Temperature [°C] | -20 to 60 |
MECHANICAL
Dimensions (W x H x D) [mm] | 1,462.3 x 837.3 x 68.1 |
Weight [kg] | 29.4 |
Bezel Width [mm] | 14.9 |
VESA Mounting [mm] | 4 holes; 400 x 400 (FDMI); M8 |
Ingress Protection | IP5x (front); IP2x (back) |
Packaging Dimensions (W x H x D) [mm] | 1,736 x 1,033 x 280 |
Packaging Weight [kg] | 41.7 |
Colour Bezel | Pantone 426M (black) |
Material | Metal |
MEDIAPLAYER
Supported File Storage / File System | USB 2.0 / FAT16, FAT32 |
Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
AVAILABLE OPTIONS
Accessories | Feet (ST-65M); MPi4 NEC MediaPlayer Kit; Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P) |
GREEN FEATURES
Energy Efficiency | Energy consumption: 156 kWh/1000 h; Energy efficiency class: G; LED backlight |
Ecological Standards | EnergyStar 8.0 |
ADDITIONAL FEATURES
Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
Pixel Failure Class | ISO 9241-307, Class 1 |
Audio | Integrated Speakers (10 W + 10 W) |
Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2 |
Operating Hours | 18/7 |
External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; Scheduled Timer; SNMP |
Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |

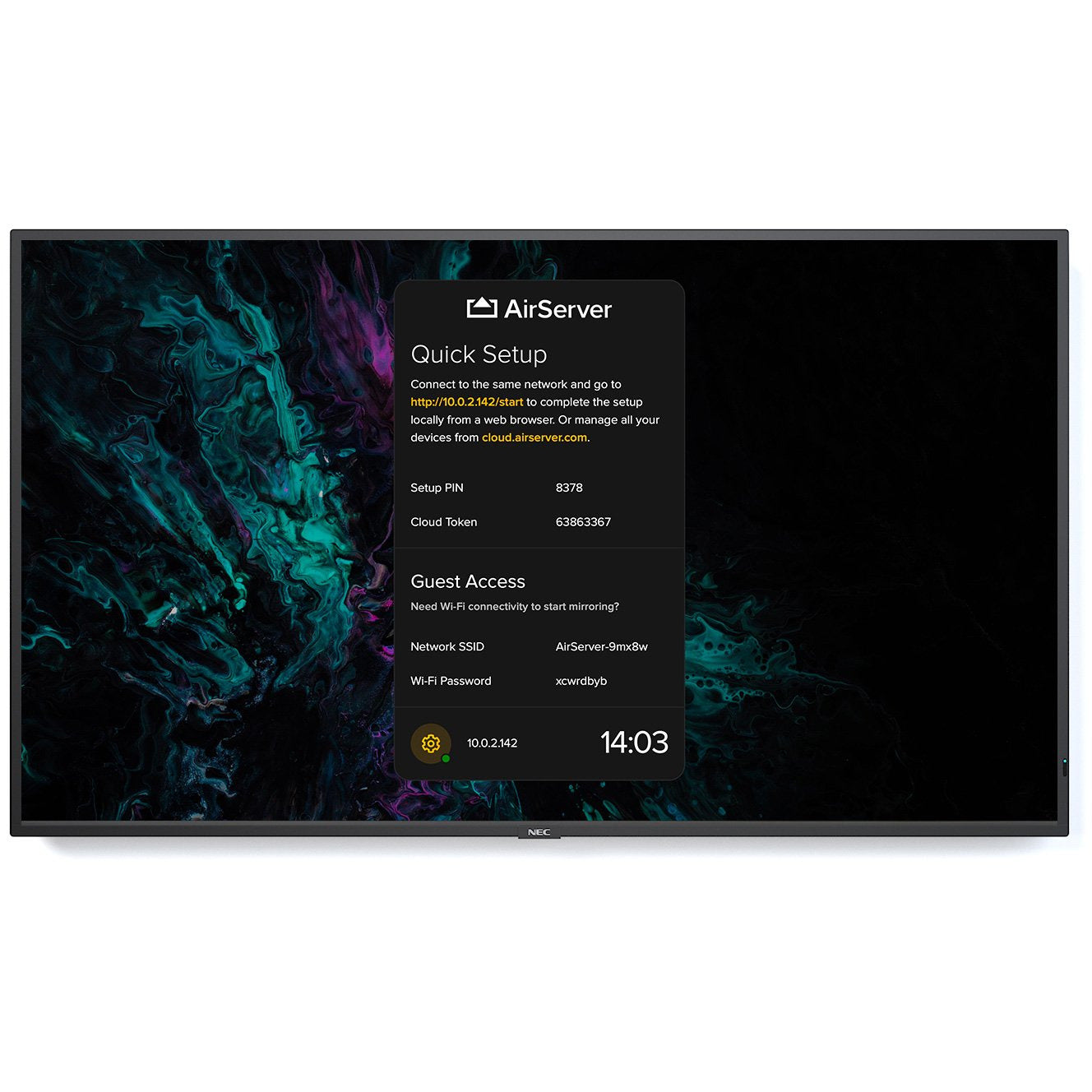

![Black NEC MultiSync® ME651 AirServer LCD 65" Midrange Large Format Display (incl. AirServer® Embedded Screen Mirroring Solution)](http://www.afterhours.co.uk/cdn/shop/files/ME_Front_AirServer_quick-setup_1600x1200px_bd8c8933-fd13-44e8-bf69-204c3007ea0e.jpg?v=1689197422&width=1445)

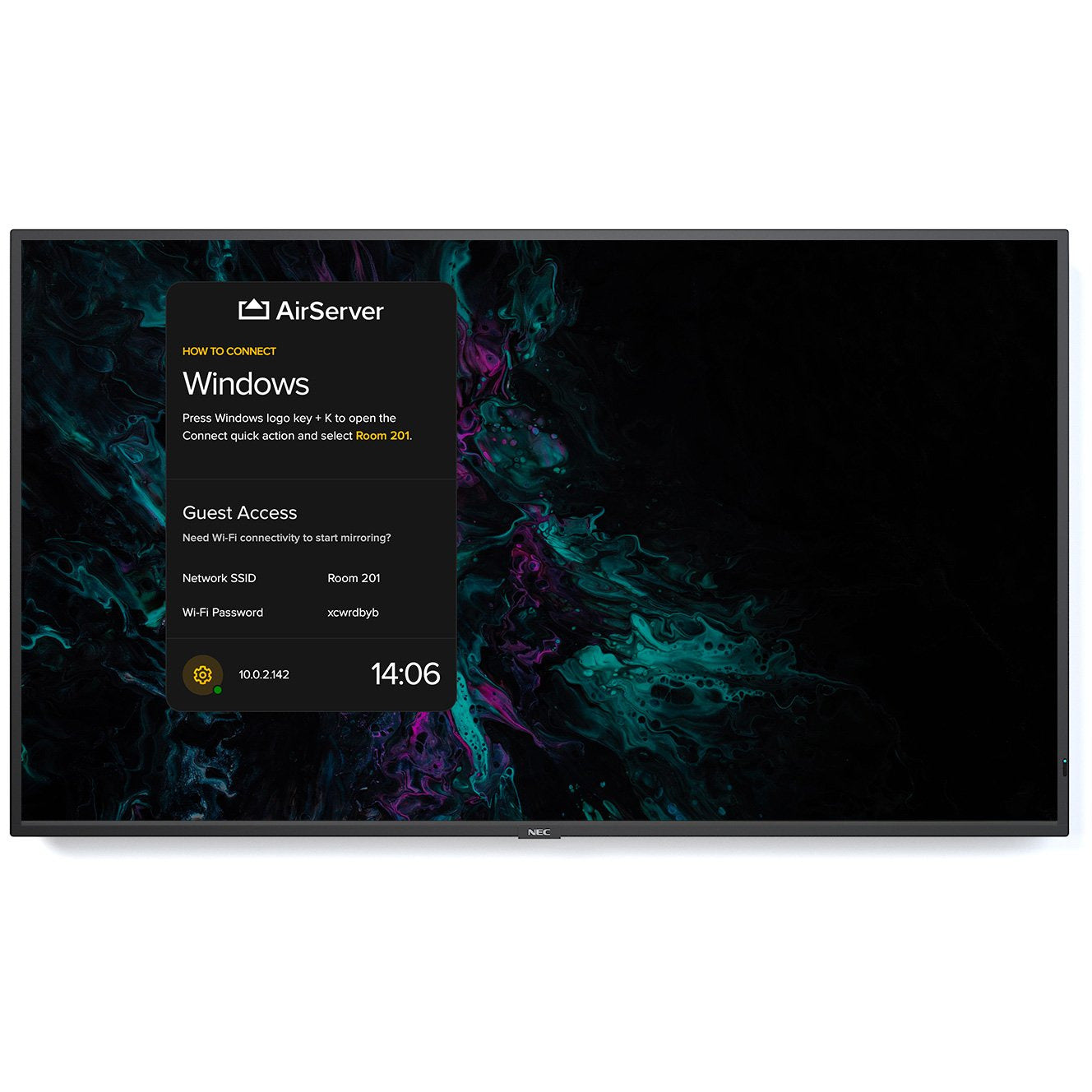

![Black NEC MultiSync® ME651 AirServer LCD 65" Midrange Large Format Display (incl. AirServer® Embedded Screen Mirroring Solution)](http://www.afterhours.co.uk/cdn/shop/files/ME_Front_AirServer_how-to-connect_1600x1200_20a7a15a-214d-459f-a08b-91575f9a0c93.jpg?v=1689197422&width=1445)
