AG Neovo TX-10 10-Inch Touch Screen Monitor
AG Neovo TX-10 10-Inch Touch Screen Monitor
SKU:TX-10
Out of stock
Couldn't load pickup availability
Features:
- WXGA 1280 x 800 resolution with 16:10 aspect ratio
- 10-point projected capacitive touch technology
- Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
- Included side mounting brackets for flexible installation
- Landscape and Portrait for flexible display orientation

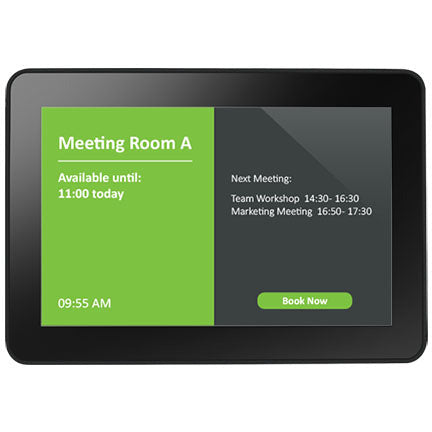

The TX-10 10-inch touch screen monitor brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in various applications — conference room schedule display, self-service kiosks, in-store interactive signage or control panels. Flexibility in either landscape or portrait installation, the TX-10 touch screen is the perfect fit.
FUNCTIONAL AND RELIABLE FOR ROUND-THE-CLOCK USE
Using projected capacitive (PCAP) touch technology, the TX-10 touch screen has 10 point multi-touch capability, gives the user a higher precision, and brings the same touch experience as using a tablet or smartphone. And this functionality is backed by a high-impact resistant screen glass and a high reliability level for around-the-clock operations.
WATER AND DUST RESISTANT DESIGN
The front-side IP65 rating protects the touch screen from water and dust. The outer edge of the display is plastic resin bezels and a foam seal finish, ensuring a seamless, airtight fit and protection from dust invasion. Perfect for high-use applications like kiosks or control panels.
CABLE MANAGEMENT SYSTEM
Cleanliness and orderliness are key in commercial and industrial settings. A lockable power adapter and cable organizer at the back end of the touch screen keep cables neat and in order, preventing loose, messy, or disconnected cords.
EASY SYSTEM INTEGRATION
Plug-and-play multi-touch capability for Windows 7/8/10 and versatile connectivity (DisplayPort, HDMI, VGA) enable effortless system integration and facilitate users to connect to various devices.
MOUNT WITH FLEXIBILITY
AG Neovo equipped this 10-inch touch screen monitor with external open frame brackets. This allows users to mount the screen in their unique environment and purpose—in either landscape or portrait orientation.
Specifications:
Panel
- Panel Type
- VA
- Panel Size
- 10.1"
- Max. Resolution
- 1280 x 800
- Pixel Pitch
- 0.169 mm
- Brightness
- 500 cd/m²
- Contrast Ratio
- 1300:1
- Viewing Angle (H/V)
- 170°/170°
- Display Colour
- 16.2M
- Response Time
- 5 ms
Frequency
- Frequency (H)
- 31 kHz-50 kHz
- Frequency (V)
- 56 Hz-60 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.3a x 1
- VGA
- 15-Pin D-Sub x 1
Audio
- Audio Out
- Stereo Audio Jack (3.5 mm)
Touch Screen
- Technology
- Projective Capacitive
- Positional Accuracy
- ±2.5 mm
- Panel Interface
- USB (Type-B)
- Multi-touch Plug & Play
- 10-point touch for Windows® 7、8、10、11
- Single Touch Support by Driver
- Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
- Multi-touch Support by Driver
- 10-point touch for Linux、Android 2.3-4.x
Power
- Power Supply
- External
- Power Requirements
- DC 12V
- 1.0A
- On Mode
- 8W (On)
- Standby Mode
- < 0.8W
- Off Mode
- < 0.3W
Glass
- Thickness
- 3.3 mm (0.13")
- Reflection Rate
- < 12%
- Transmission Rate
- > 85%
- Hardness
- > 7H
Operating Conditions
- Temperature
- 0°C to 50°C (32°F-122°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C to 60°C (-4°F-144°F)
- Humidity
- 10%-90% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (100 x 100 mm)
Dimensions
- Product w/o Base (W x H x D)
- 260.7 x 183.4 x 39.4 mm (10.3” x 7.2” x 1.6”)
- Packaging (W x H x D)
- 370.0 x 325.0 x 160.0 mm (14.6” x 12.8” x 6.3”)
Weight
- Product w/o Base
- 1.4 kg (3.1 lb)
- Packaging
- 2.4 kg (5.3 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- BSMI
- RoHS
- REACH
- WEEE
- EAC
- UKCA
Accessories
- Supplied
- DisplayPort Cable
- Power Adaptor
- Power Cord
- Quick Start Guide
- Side Bracket Package
- USB Cable
- VGA Cable

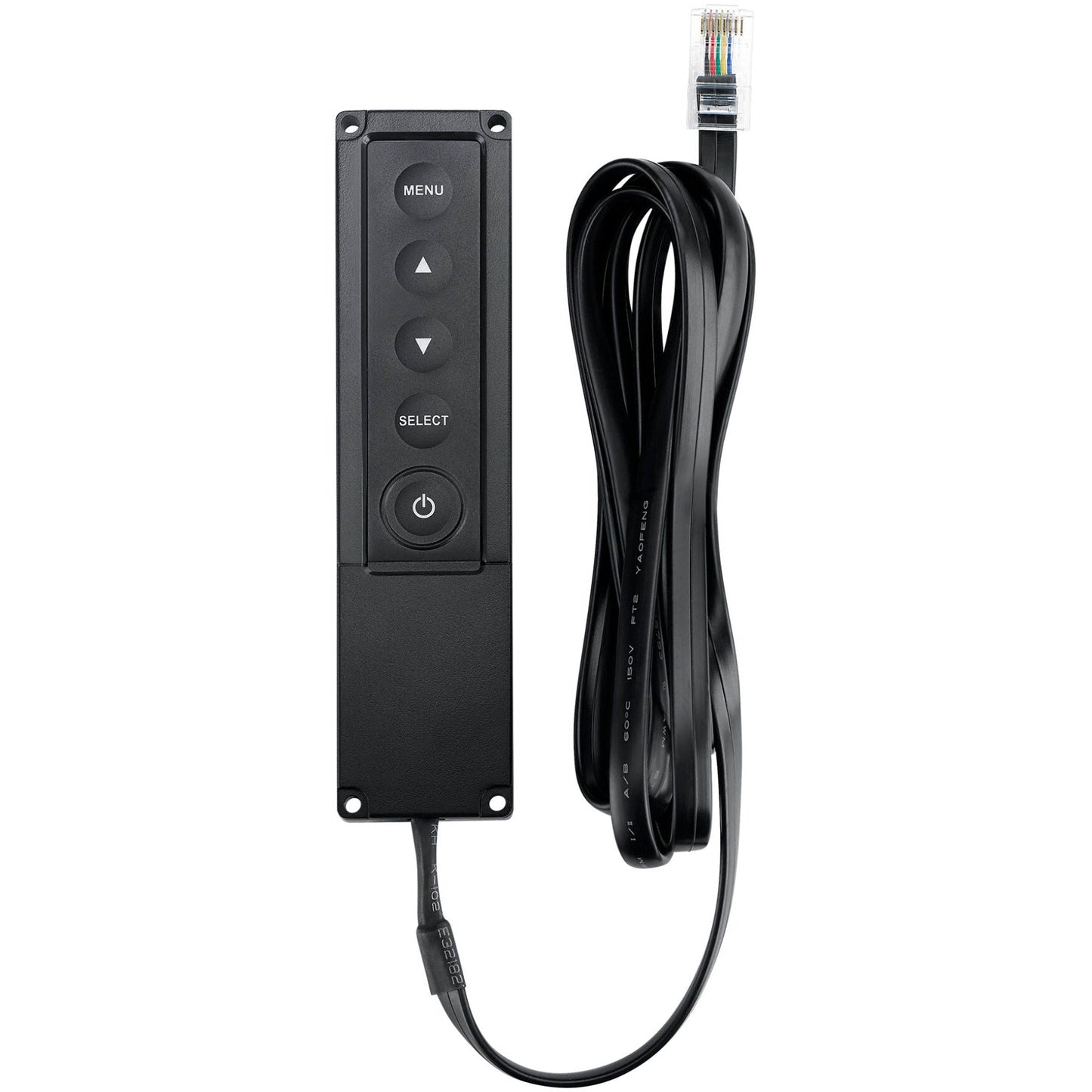

- Wired OSD Controller
Optional Accessories
- Wall Mount (Landscape only)
- PMK-01
- WMK-01
