Vigilant Vision

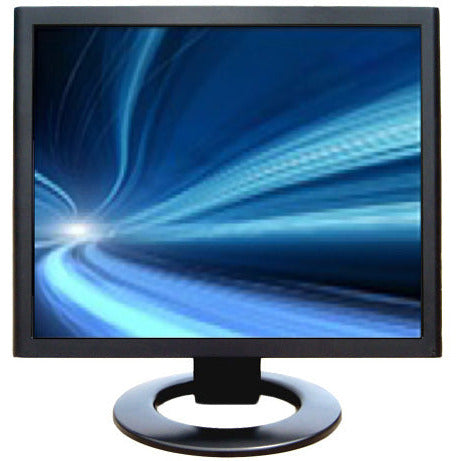

Vigilant Vision 17" LED 4:3 Monitor 1280x1024
Vigilant Vision 17" LED 4:3 Monitor 1280x1024
SKU:AS17LED-3
Regular price
£175.21 GBP
Regular price
Sale price
£175.21 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
SPECIFICATION
IN/OUT INTERFACE
POWER
| Panel Type | 15.6” (16:9) LED Monitor |
| Case Type | Metal |
| Maximum Resolution | 1920 (H) x 1080 (V) |
| MTBF | 40,000 hrs |
| Active Display Area | 344.16 (H) × 193.59 (V) mm |
| Pixel Pitch | 179.25 (H) x 179.25 (V )mm |
| Bezel Thickness | T: 15.4mm L/R: 19.7mm, B: 38.1mm |
| Contrast Ratio | 800 : 1 Ratio |
| Brightness | 250 cd/ m2 |
| Response Time | 10 + 15 m.sec (G to G) |
| Viewing Angle | 85 / 85 U / D 85 / 85° |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatibility | Yes |
| Aspect Ratio | 16:9 |
| VGA Auto Frequency correction | Yes |
| Number of Speakers | 2 |
| Sound Demodulation | Stereo |
| Mute | Yes |
| Work Humidity | 0% – 80% |
| Work Temperature | 0 to +50 °C |
| Volume +/- Power On/Off | Yes |
IN/OUT INTERFACE
| Video Interface | VGA, HDMI, 1 x BNC in, 1 x BNC out, Audio |
| Audio Interface | 3.5 mm Jackplug |
| Power Interface | DC 2.1mm |
| Termination | 75 Ohms (Automatic termination) |
| Safety & EMC Certification | FCC ,CE, ROHS-2 |
| Vesa Standard Mount | 100mm x 100mm |
| Stand Type | Picture Frame |
| Colour | Black |
| Button Position | Front |
| Packing Dimension | 410mm x 410mm x 150mm |
| NET Weight | 3.3 Kgs |
| GROSS Weight | 4.0 Kgs |
POWER
- Power Supply: 12v 2 Amp
- Power Consumption: < 15W
OSD CONTROLS
VIDEO-Picture, Brightness, Contrast, Color, Sharpness, Colour Temp, Advance Control, Focus, AUDIO-Sound Mode, Balance, Bass, Treble, Virtual Surround, AVL, Camera, SETTING-Menu Language, Picture Format, Menu Timeout, Menu Transparency, Power On status, Blue Screen System Reset
OSD LANGUAGE
English, French,German, Spanish, Italian, Russian, Portuguese, Polish, Arabic & Korean
ACCESSORIES
Power supply, Stand, Remote Control, User Guide, HDMI Cable
